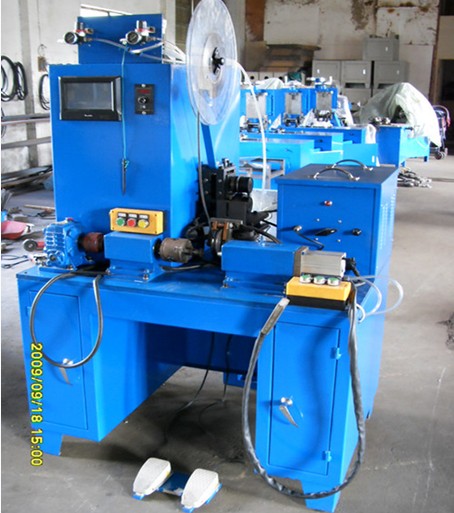

Product name: Small cnc gasket winding machine

Model # KMD - 1

Function description: this machine is used for 1/2 "- 2" inner winding gasket processing, top and roller adopt pneumatic, pressure adjusting range is big, easy to operate. It adopt servo motor, machining parameters by touch screen and PLC, digitizing input parameters. Size is controlled by a lever potentiometer, when compared with ordinary winding machine has the size without manual measurement, and the advantages of reducing measuring error.

The basic parameters: voltage: ~ 220 v

Power: 0.75 KW

Net weight: 300 kg

Scope of application: 1/2 "- 2"

Length x width x height: 110 * 85 * 85
